1982 Panelvan "T3"

1982 Panelvan crewcab conversion

"T3"

General info

model:	VW Transporter D
enginenr.:	CS 092 568 (1600cc watercooled dieselengine revised by VW)
modelyear	1982

fleet status	still in fleet
current status	daily driver
plans	keep it driving and trying to get back the original colour: 'bambusgelb LH1B'

The Story

Even though I didn't want it....some things you just can't stop....the world is evolving, even the fleet cannot escape this from happening. So on april 8th 2003 the time was there: fleet modernization. A giant leep for fleetkind. Here's a small overview to the revolutionary new techniques this car his store:

this car is actually watercooled!! (my first wattercooled car....<snif>)
diesel powered
no more torsion suspension
self adjusting drumbrakes
estimated increase of plastics in fleet by 200%!!!
perfect underfloor protection against rust

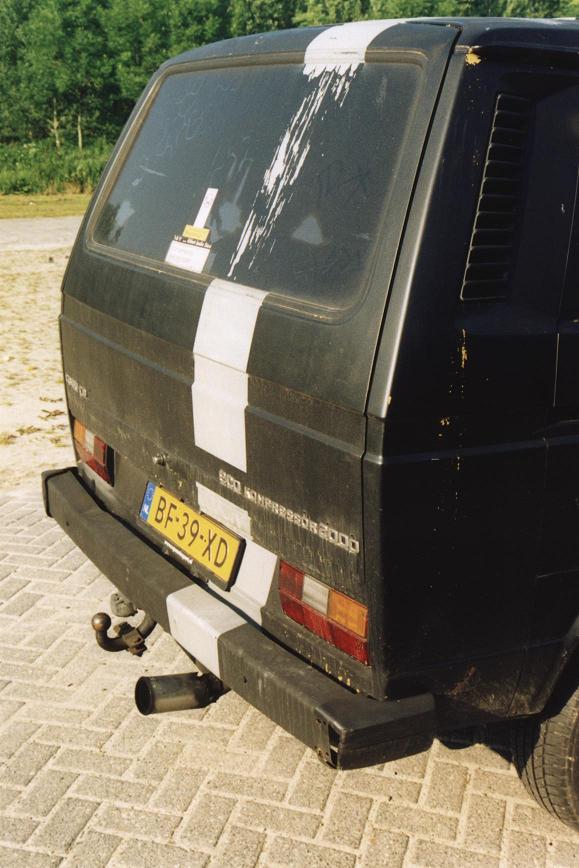

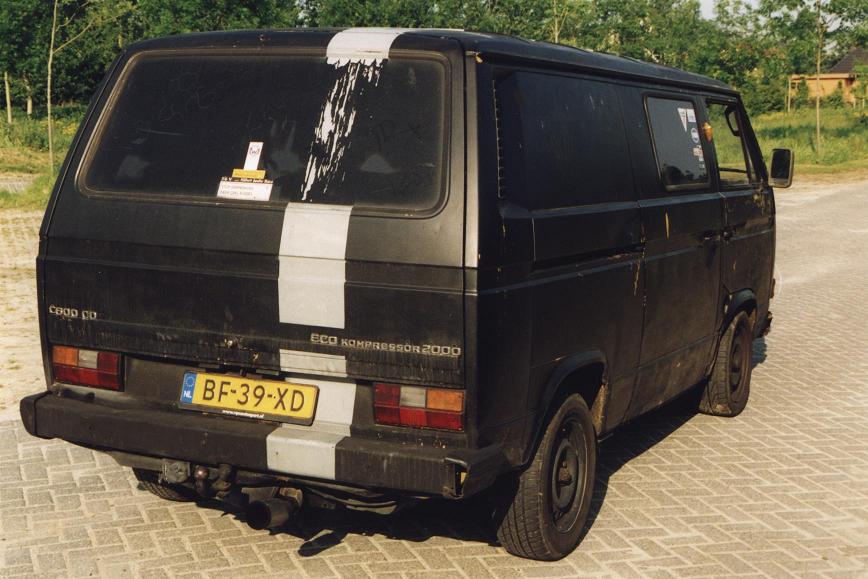

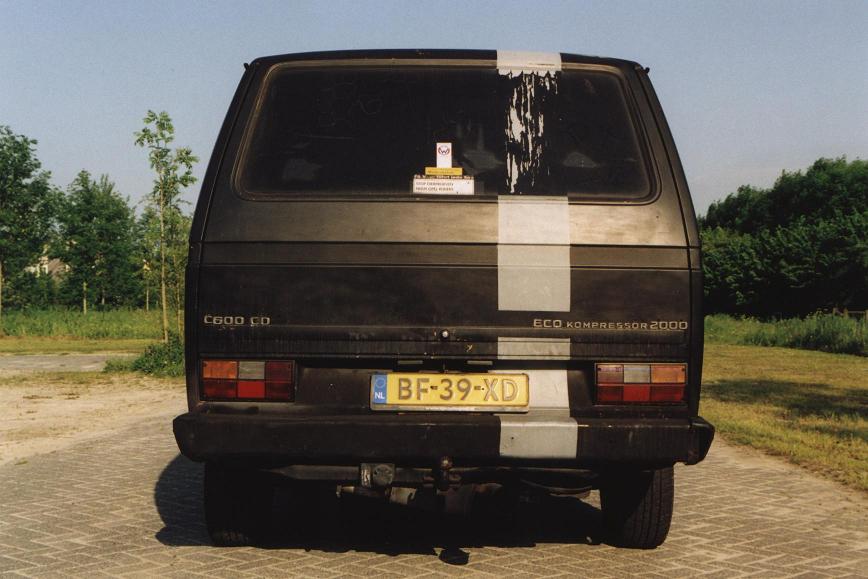

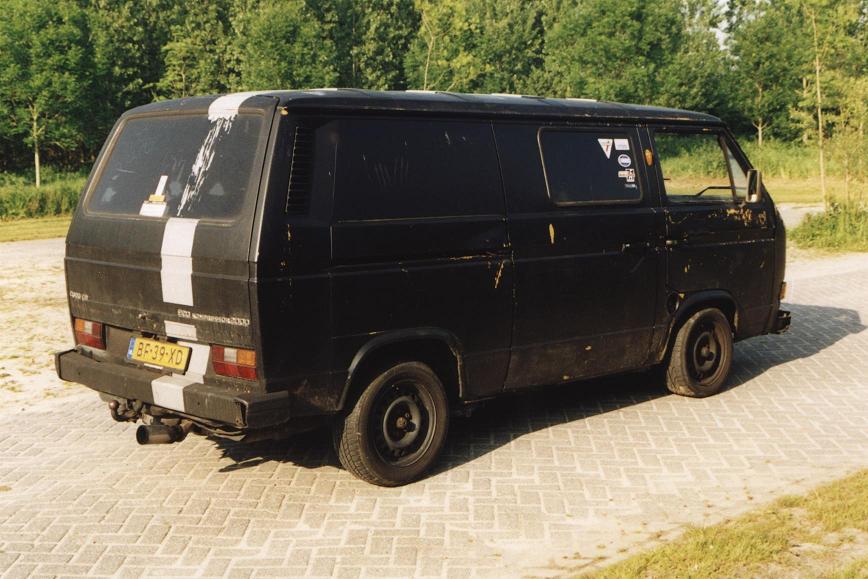

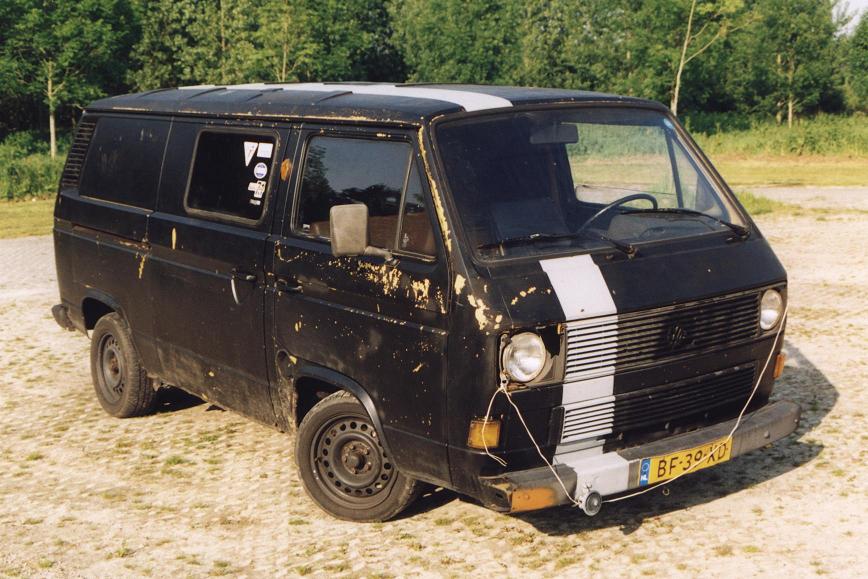

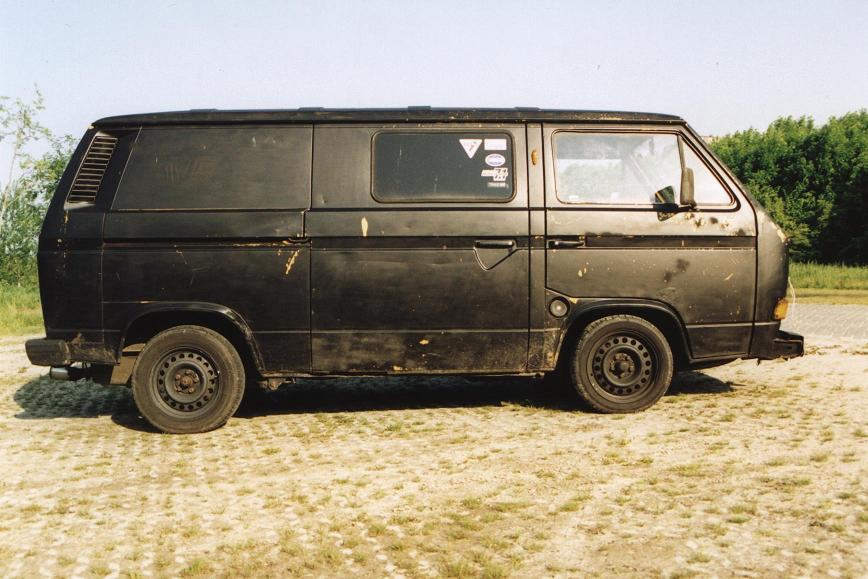

Pictures

Vehicle Data

M-plate and M-sticker

Here's the data from the M-plate. It's fixed underneath the drivers seat in every T3 from 1979 until 1991. Since modelyear 1981 the T3 M-plate doesn't provide as much info as the plates in the earlier Transporters. The 'competitor' of the M-plate became the M-sticker near the brakepedal. It provides a lot of vehicle info. Unfortunately it is made of paper so the chances of it being there get slimmer while the year pass...

16 5 7140 HO 2510 41

B5B5LN 222

CH 125 755

16 5
'planned'(?) production date: week 16, day 5 (=Friday), 1982

7140
??? unknown production code ???

HO
destinationcode: The Netherlands ('Holland')

2510
2 - VW Type 2 (= Transporter)
5 - bus-shaped model
1 - panelvan, LHD, sliding door right
0 - standard version

41
4 - 1600cc dieselengine
1 - 4-speed manual gearbox

B5B5LN
B5 - bodycolour: bambusgelb LH1B
B5 - roofcolour: bambusgelb LH1B
LN - interior: Van Dyck (leatherette)

222
M-code: 4-cylinder dieselengine 1600cc, 50hp

CH 125 755
Chassisnumber:
C - modelyear 1982
H - factory: Hannover, West Germany
125 755 - serial number

SORT. NR.
FAHRG. NR.
CHASSIS NO. 16-5-7140 211
HO

wv2zzz25 z CH125755

TYP / TYPE 251 041

MOTORKB. / GETR. KB.
ENG. CODE/TRANS. CODE CS DM

LACKNR. / INNENAUSST.
PAINT NO. / INTERIOR LH1B
LN

M - AUSST. / OPTIONS B39 013 500 697 731

16-5-7140
16 5 - 'planned'(?) production date: week 16, day 5 (=Friday), 198

211
imported by 'Pon', The Netherlands

HO
destinationcode: The Netherlands ('Holland')

wv2zzz25zCH125755
Chassisnumber

251 041
2 - VW Type 2 (= Transporter)
5 - bus-shaped model
1 - panelvan, LHD, sliding door right
0 - standard version
4 - 1600cc dieselengine
1 - 4-speed manual gearbox

CS
engine type: 1600cc Diesel engine

DM
gearbox type: 4-speed manual for 1600cc diesel (?)

LH1B
paintcode for 'bambusgelb'

LN
interiorcode for 'Van Dyck'

B39

group of M-codes for Dutch market:
050 - warninglamp for dual brakecircuit and handbrake
085 - filled in factory with double amount of fuel (for transport purposes)
506 - brake servo
528 - convex rear view mirror on right side
912 - without ID-plate in front doorjam on right side

013
M-code: 2-person passengerseat in cabin

500
M-code: full-with partition between cabin and cargocompartment

697
M-code: Continental Tyres

731
M-code: ??? unknown ???
